型号:DMW-A 系列
品牌:DREAM
工作压力:8~10 [ bar ] 116.0~145.0 [ psig ]
空气容量 (FAD):210~3600 [ L/min ] 7.4~127.1 [ cfm ]
功率:3~33 [ KW ] 4.1~44.9 [ hp ]
更多参数,请咨询我们。

SHARE

概述

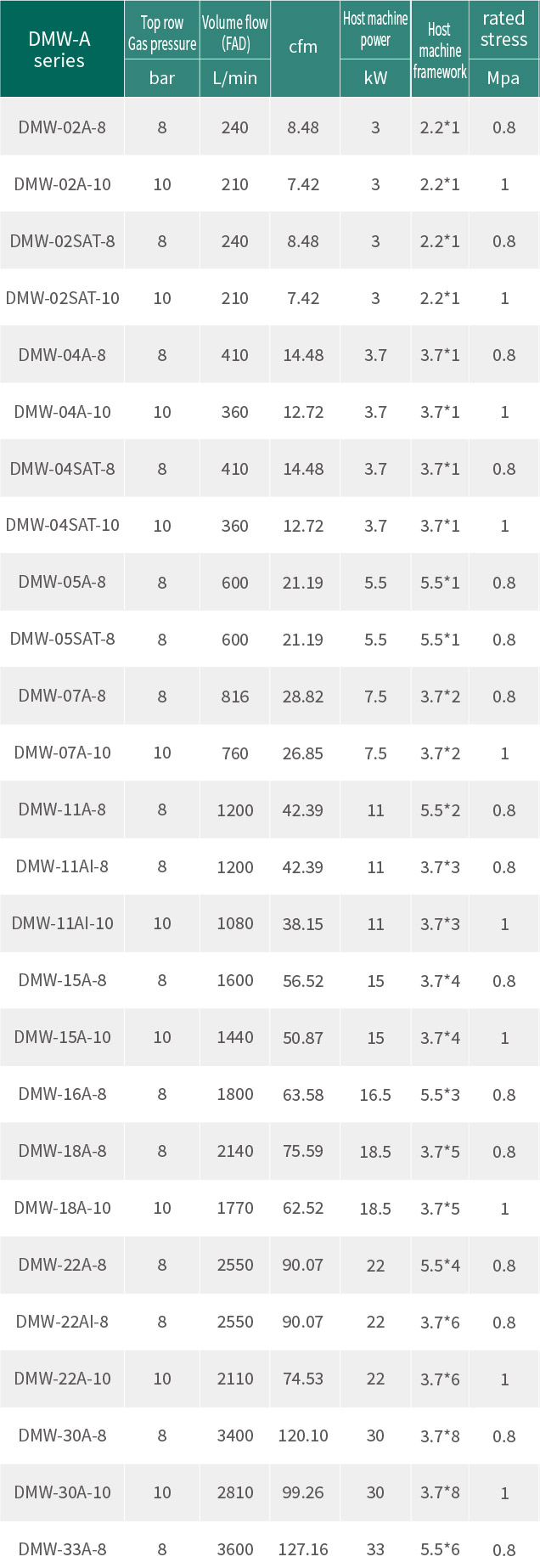

参数
Q&A

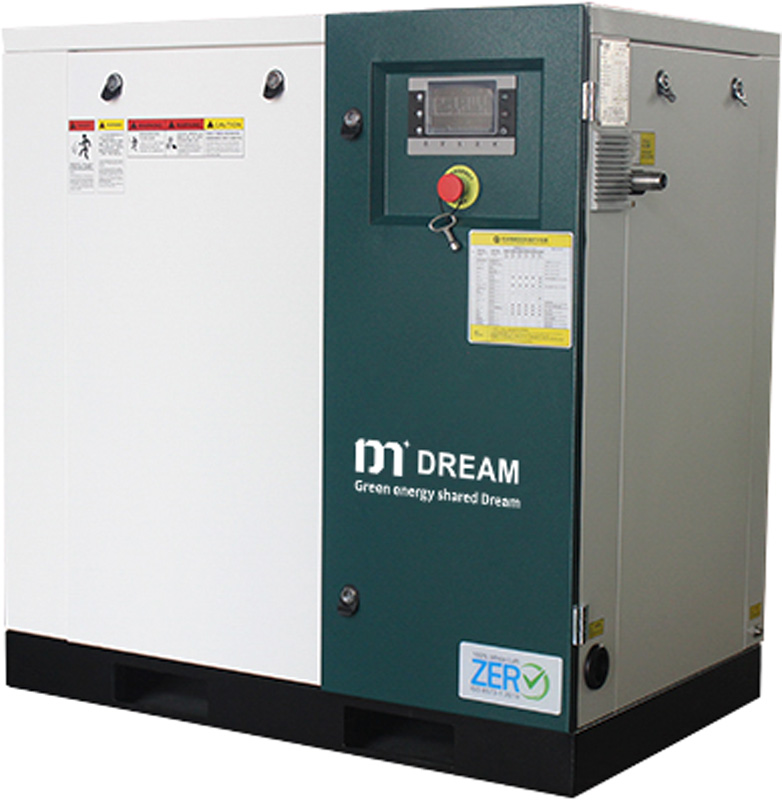

DMW-A 系列

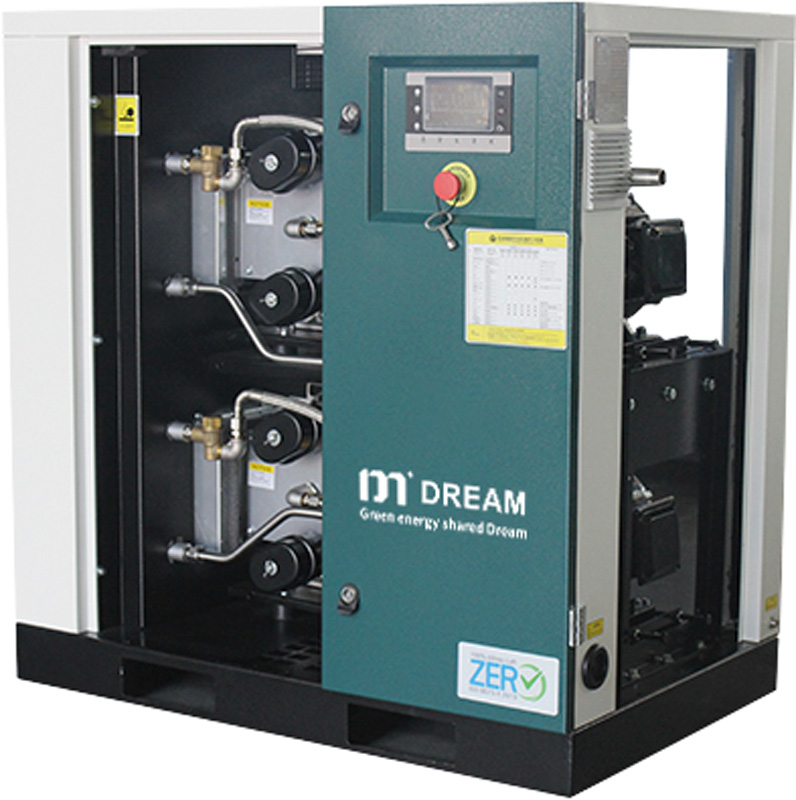

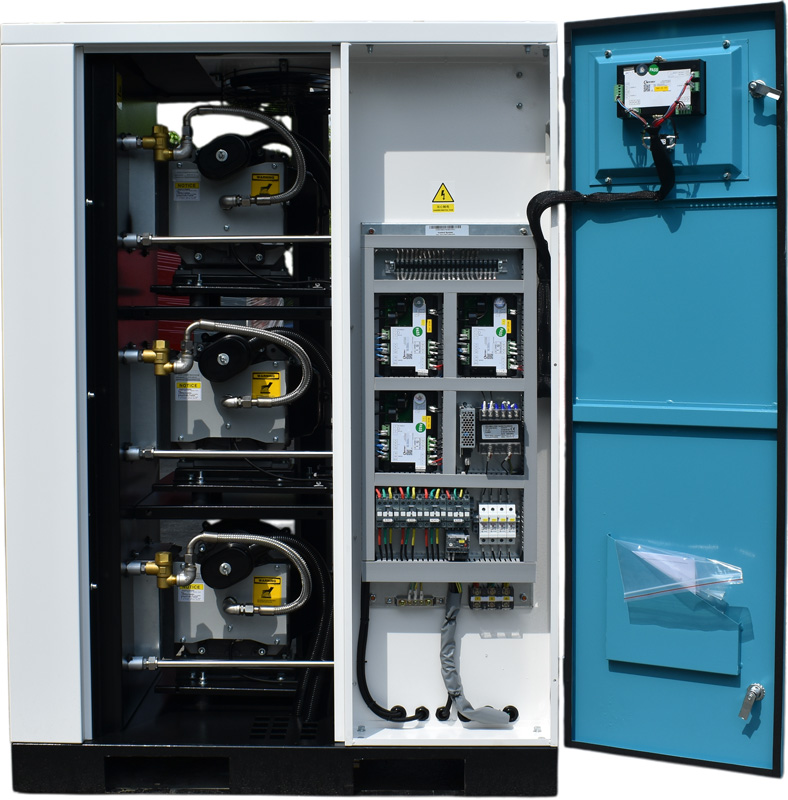

无油涡旋式空气压缩机

无油涡旋式空气压缩机是一种容积式压缩空气压缩机,其压缩部件由动态涡流板和静态涡流组成。其工作原理是利用动、静涡旋板的相对轨道运动,在封闭空间内形成连续变化,达到压缩气体的目的。主要用于空调、制冷、一般气体压缩,以及中小型空气压缩机用于汽车发动机增压器和真空泵的场景。它已通过ISO 8573-1 0级无油认证。

Reliable performance of the original mainframe

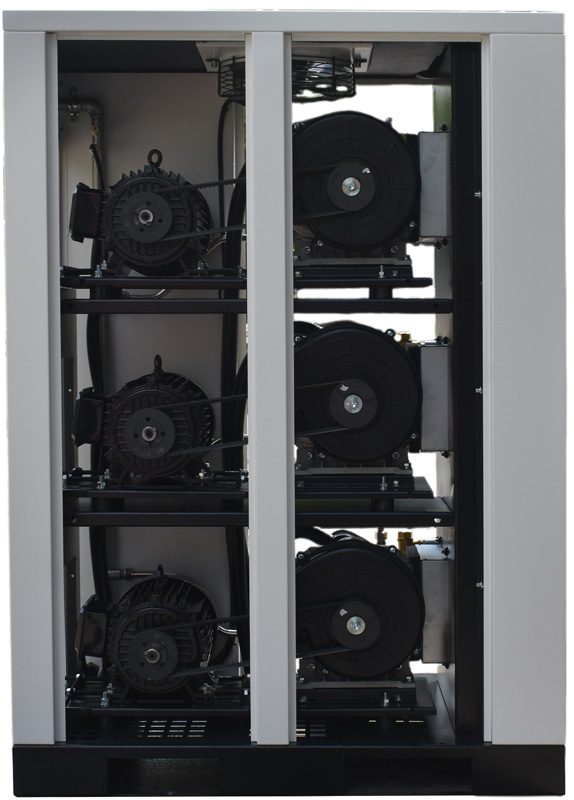

原主机性能可靠

主机采用动、静涡旋三密封设计,使压缩过程更加稳定。多翼冷却风扇,有效冷却主机。

Efficient main motor

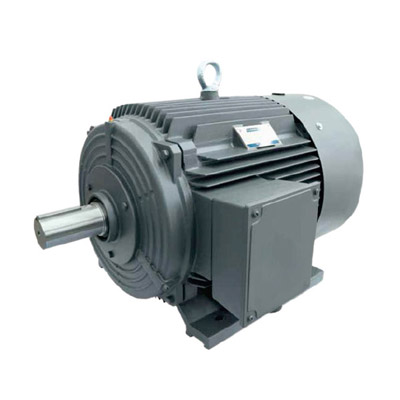

高效主电机

采用知名品牌主电机,能效等级为IE3,设计标准完全符合 空气压缩机对扭矩和负载的要求,使主电机能够达到最高的工作效率 以及满载和部分负载时的功率因数。IP55防护等级TEFC主电机,绝缘等级F,因此 它可以适应各种工作环境,保证主电机的可靠性。

Secondary cooler with high heat transfer efficiency

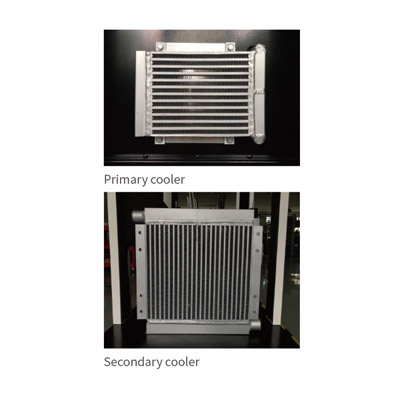

传热效率高的二次冷却器

两级冷却器设计,冷却更充分。每个涡旋主机都有一个单独的冷却器(主冷却器),整台机器都配备了一个辅助冷却器,以进一步降低排气温度。二冷器的风扇可以根据排气温度自动启动和停止,节约能源

Reliable transmission system

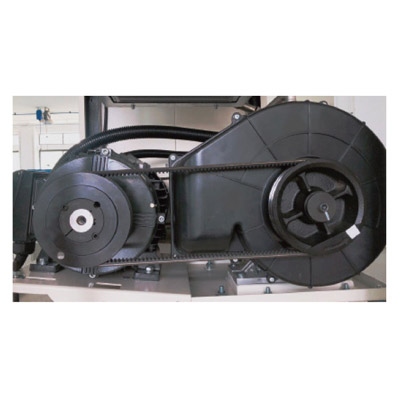

可靠的传输系统

具有自动张紧功能的传统皮带系统在整个运行过程中保持高效运行。该系统易于维护,稳定可靠,在启动过程中可以最大限度地保护主机。

Intelligent control system

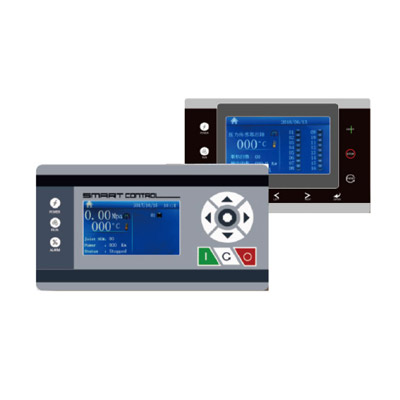

智能控制系统

Dream自主研发的智能控制系统最多可控制10台无油涡旋主机。当多台主机参与操作时,控制系统将使每台主机保持相同的运行时间,以降低用户的维护成本,控制系统还将检测每台主机的运行时间和机组的轮换时间。如果达到“轮换时间”,系统会自动切换正在运行的主机,关闭运行时间最长的主机,启动运行时间最短的主机。

Honor

认证

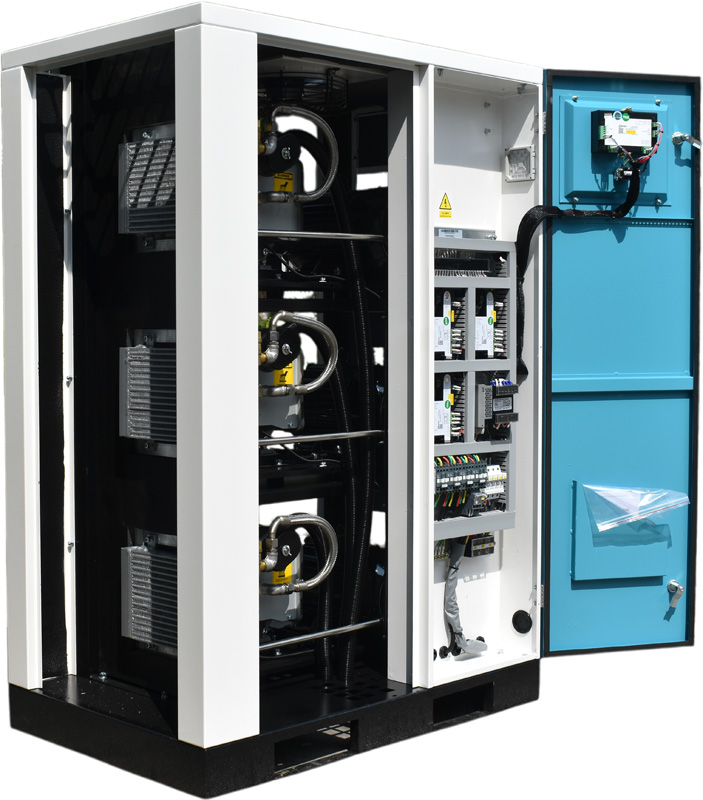

每个主机由一个独立的控制器控制。单个控制器的故障不会影响其他主机的运行,并且非常可靠。控制器符合CE认证,功能强大。在控制系统的大彩屏上,可以显示每台主机的温度、每台电机的电流、运行时间、排气压力,并具有逆相保护、维护提醒等多种功能,使用方便。

What are the main features of the Dream 无油涡旋式空气压缩机?
Answer: The Dream 无油涡旋式空气压缩机 features an oil-free design, high efficiency, low maintenance cost, wide application range, low noise, high reliability, energy saving, modular design, intelligent control, compact size, long service life, and environmental friendliness. It provides clean, oil-free compressed air suitable for various industries.
How does it ensure the purity of compressed air?
Answer: The oil-free design eliminates the need for lubricating oil, thus ensuring that the compressed air is free from oil contamination. This makes it suitable for applications requiring high air quality, such as medical and food processing industries.
In which industries can it be applied?
Answer: The Dream 无油涡旋式空气压缩机 is widely used in manufacturing, medical, electronics, food and beverage, laboratory, textile, mining, and transportation industries. It meets the diverse needs of different industries for high-quality compressed air.
What is the advantage of its modular design?
Answer: The modular design allows for flexible combination according to demand, improving system adaptability and efficiency. It also facilitates easy installation, maintenance, and upgrades.
How does it achieve energy saving?
Answer: The Dream 无油涡旋式空气压缩机 adopts advanced technologies such as variable flow technology and start-stop control to reduce energy waste and improve energy efficiency. This helps lower operational costs and environmental impact.
What is the intelligent control system like?
Answer: It is equipped with an advanced control system, featuring an LCD controller that displays working status, machine protection, maintenance information, and output status. The intuitive interface and multifunctional icons make operation simple and convenient.
How often does it need maintenance?
Answer: Due to the oil-free design and simple structure, the maintenance frequency of the Dream 无油涡旋式空气压缩机 is relatively low. Regular inspections and cleanings, as recommended by the manufacturer, are sufficient to ensure its optimal performance.
What are the common faults and how to troubleshoot them?
Answer: Common faults may include abnormal noise, increased temperature, or decreased air output. Troubleshooting involves checking the air intake and exhaust valves, cooling system, and electrical connections. The user manual provides detailed guidance on fault diagnosis and solutions.
How to ensure the longevity of the compressor?
Answer: To ensure the longevity of the Dream 无油涡旋式空气压缩机, it is recommended to follow the manufacturer's maintenance schedule, use genuine parts for replacements, and avoid operating the compressor under adverse conditions. Regular inspections and timely repairs can also help extend its lifespan.
Can it operate continuously for a long time?
Answer: Yes, the Dream 无油涡旋式空气压缩机 is designed for continuous operation. However, it is recommended to periodically shut down the compressor for cooling and inspections to ensure its long-term reliability.
What is the warranty policy for this product?
Answer: The Dream 无油涡旋式空气压缩机 comes with a warranty period as specified according to different models. Usually it is 1-5 years.
How to contact customer service for support?
Answer: Customers can contact Dream's customer service team through the official website or the contact information provided in the user manual. The team is available to assist with any inquiries, troubleshooting, or spare parts orders.
What are the dimensions and weight of the compressor?
Answer: The dimensions and weight of the Dream 无油涡旋式空气压缩机 vary depending on the specific model. Customers can refer to the product specifications on the official website or consult the sales team for detailed information.
Is it easy to install and move the compressor?
Answer: Yes, the Dream 无油涡旋式空气压缩机 features a compact design, making it easy to install and move. Its small footprint also saves space in the workplace.
Does it comply with international safety standards?
Answer: Yes, the Dream 无油涡旋式空气压缩机 is designed and manufactured in compliance with international safety standards. It undergoes rigorous testing and certification to ensure its safety and reliability for use in various industries.
