一站式压缩空气解决方案

空气压缩系统的主要功能是将空气压缩到更高的压力 用于各种工业和机械应用。
ico
干式无油螺杆空气压缩机 (PM VSD/FSD)
干式无油螺杆空气压缩机 (PM VSD/FSD)
干式无油螺杆空气压缩机 (PM VSD/FSD)
干式无油螺杆空气压缩机 (PM VSD/FSD)
干式无油螺杆空气压缩机 (PM VSD/FSD)
干式无油螺杆空气压缩机 (PM VSD/FSD)
干式无油螺杆空气压缩机 (PM VSD/FSD)
干式无油螺杆空气压缩机 (PM VSD/FSD)
干式无油螺杆空气压缩机 (PM VSD/FSD)
干式无油螺杆空气压缩机 (PM VSD/FSD)
干式无油螺杆空气压缩机 (PM VSD/FSD)
干式无油螺杆空气压缩机 (PM VSD/FSD)
干式无油螺杆空气压缩机 (PM VSD/FSD)
干式无油螺杆空气压缩机 (PM VSD/FSD)
干式无油螺杆空气压缩机 (PM VSD/FSD)
干式无油螺杆空气压缩机 (PM VSD/FSD)

干式无油螺杆空气压缩机 (PM VSD/FSD)

型号: DMWV-G(Dry Oil Free)& DMW-G(Dry Oil Free)系列
品牌:DREAM
工作压力: 7~10 [ bar ] 101.5~145.0 [ psig ]
空气容量 (FAD): 3.6~86 [ m³/min ] 127.1~3037.1 [ cfm ]
功率: 22~560 [ KW ] 29.9~761.4 [ hp ]
更多参数,请咨询我们。

SHARE

概述

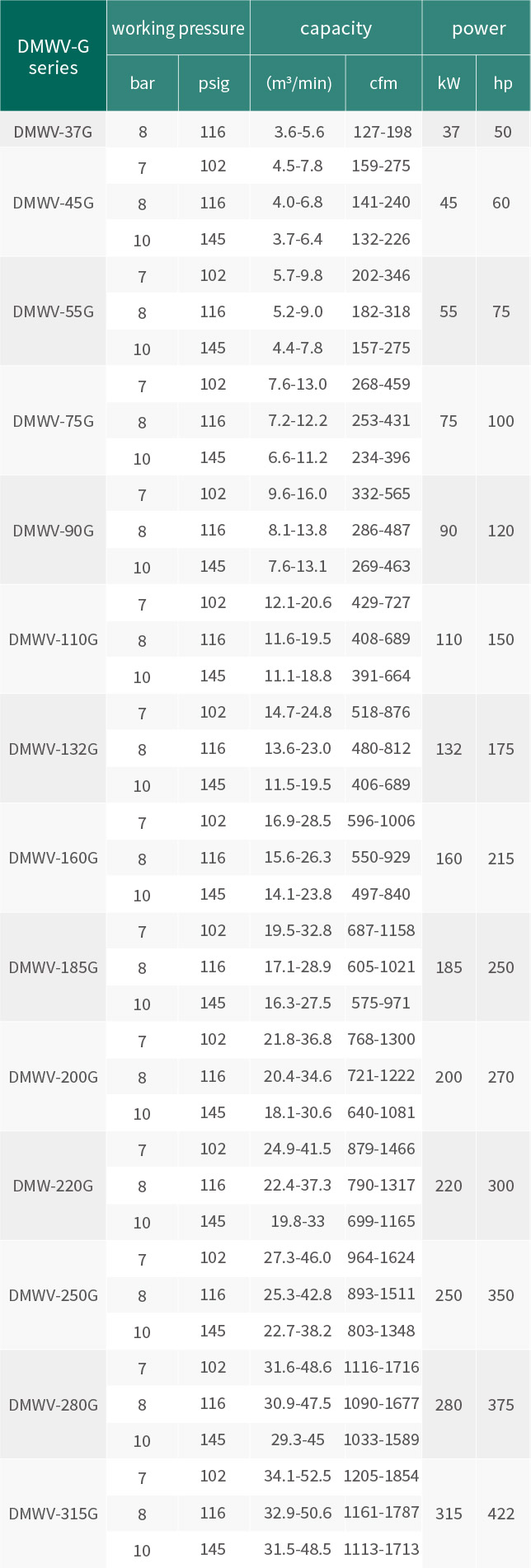

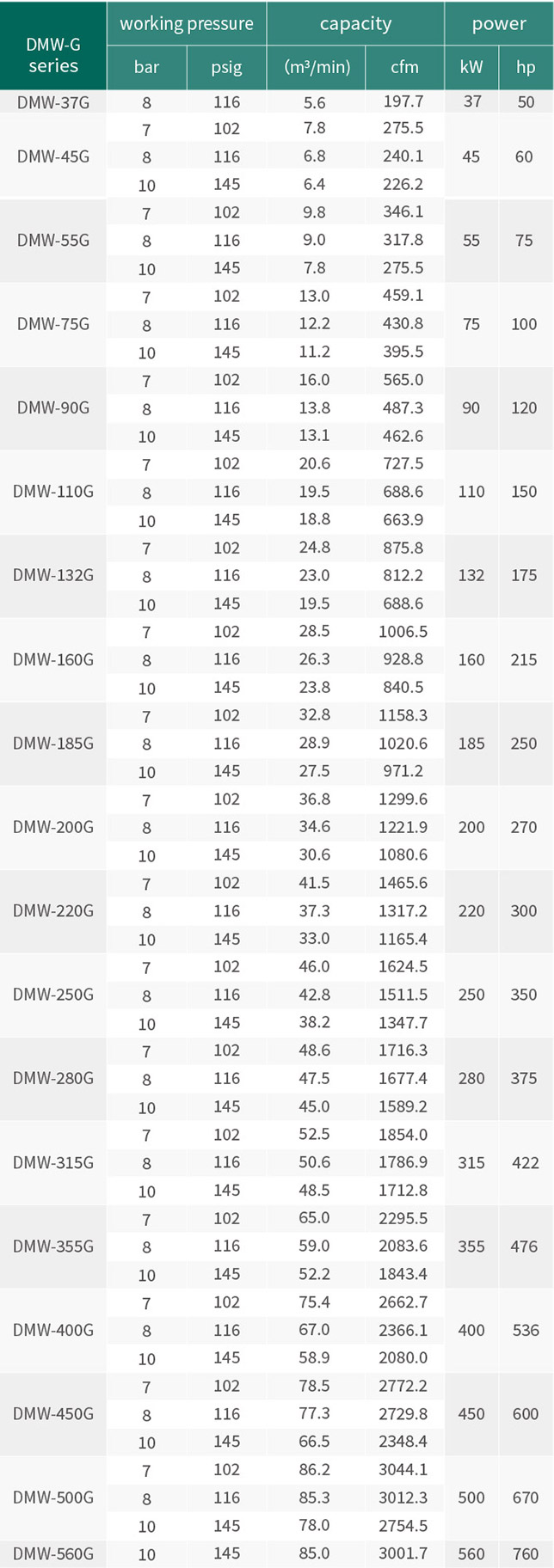

参数
Q&A

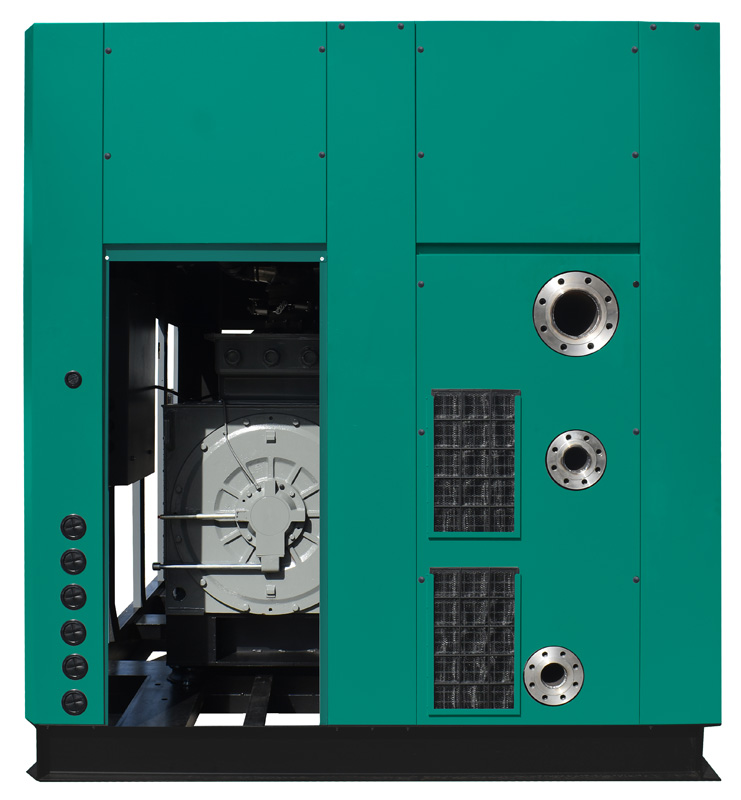

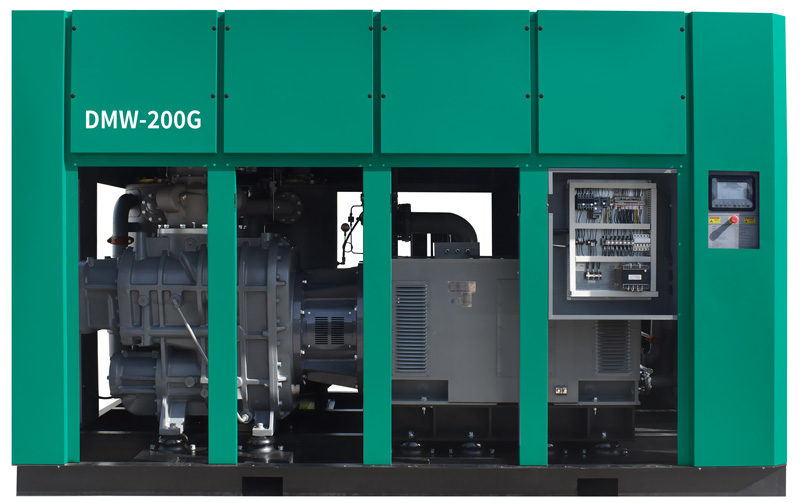

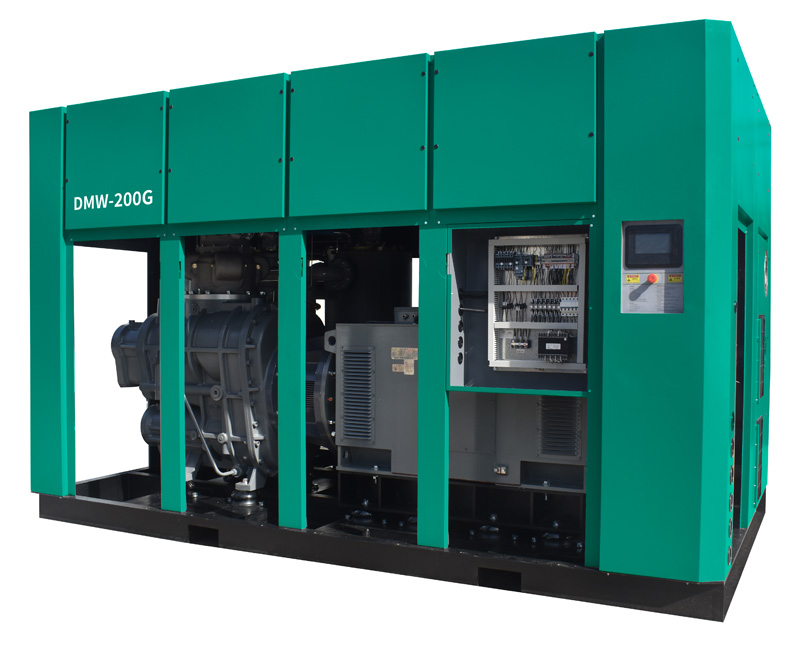

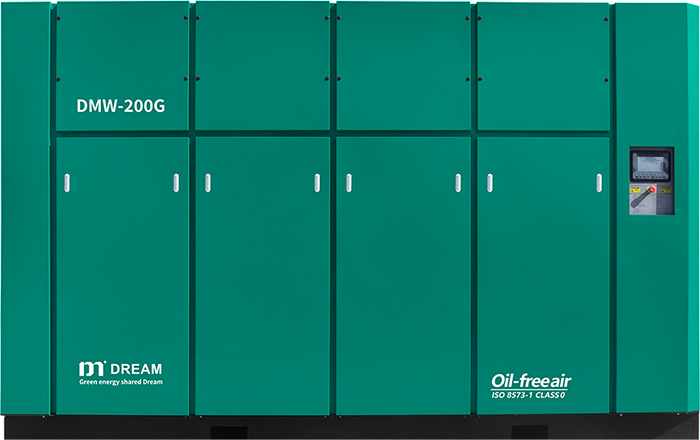

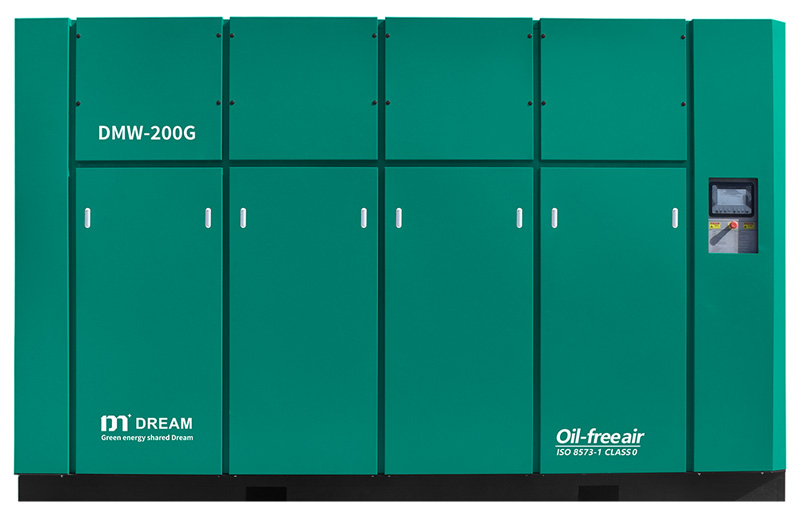

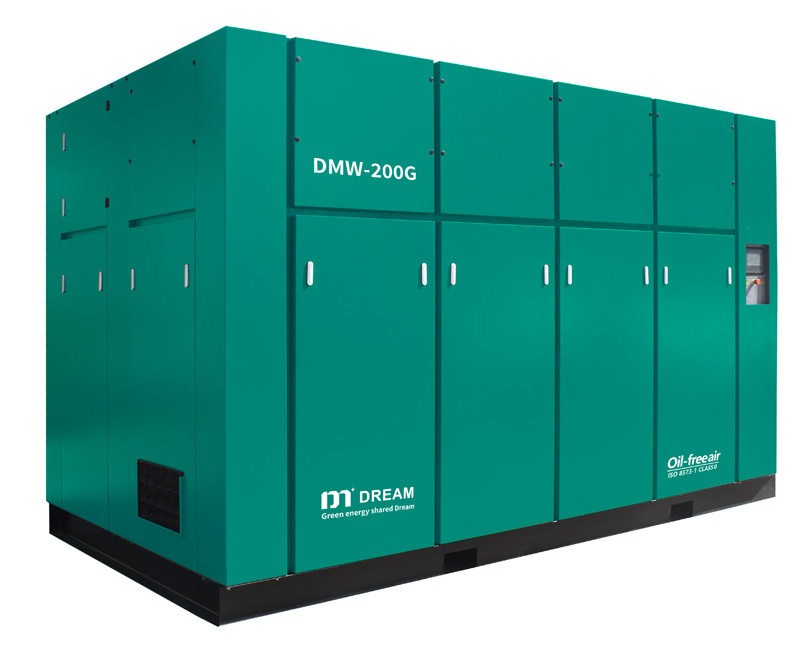

DMW-G 系列

干式无油螺杆式空气压缩机

进口无油主机,高环保、高能效,通过ISO 8573-1 CLASS 0干式测试无油螺杆式空气压缩机.



产品特点

■ IE5电机,节省您的电费,IP54,B级温升,适用于大粉尘、高温等恶劣环境;

■联轴器连接,更节能;

■ 多重降噪设计,根据噪声理论计算,内部采用特殊阻燃消声器棉,降低机组噪声,提供更安静的使用环境。

■ 带板翅式冷却器的离心风机具有高风压、低噪音、外部独立吸气、通过专门设计的风道向上排气,防止热空气回流;冷却器模块化设计,立式安装,有效消除热应力,运行更稳定,使用寿命长;

■ 日常维护部件采用可开启门板,安装位置易于更换,维护更方便

■电机过载保护

■ 全部采用304不锈钢管,即使在高温高湿条件下也不会生锈和腐蚀,使用寿命更长

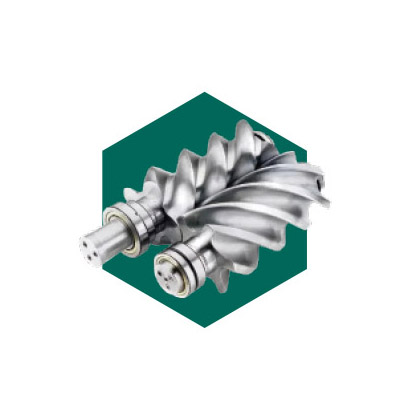

Imported oil-free main engine

进口无油主机

1.空气压缩室与油室完全分离,两者不接触。

2.两级转子采用不锈钢制造,更可靠。

3.主机转子和压缩室内壁涂有行业一流的超级涂层(UITRACOAT)。它能有效防止特氟龙等一般涂料的软化和脱落。它具有优异的防腐性能,减少了网眼间隙的作用。在整个生命周期内,气体体积不会显著减少。

4.主机壳室采用过滤后的润滑油冷却。高效冷却,避免水垢引起的水冷。

Permanent magnet frequency conversion electronic control system

永磁变频电子控制系统

大尺寸彩色液晶触摸屏,人机界面良好;定制矢量变频器,与电机完美匹配;特殊程序,全面监控机器参数,自动控制机器状态,无需特别注意;独立风道设计,适用于各种工况。

Independent air intake system

独立进气系统

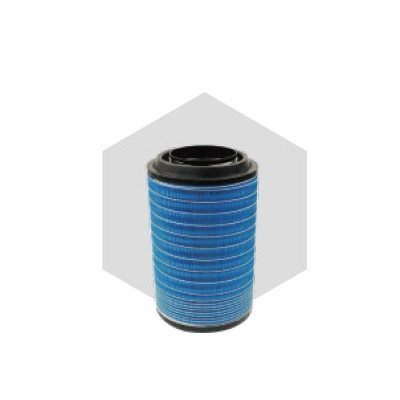

独立进气,确保进气温度等于环境温度。选用大余量空气滤清器,过滤效果更好,进气压力损失更低,节能高效。更方便的维护和更换。

Noise reduction sheet metal design

降噪钣金设计

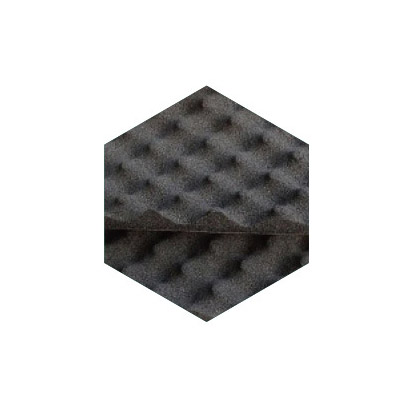

多重降噪设计,根据噪音计算,内部粘贴特殊阻燃消音棉,降低机组噪音,提供更安静的环境。

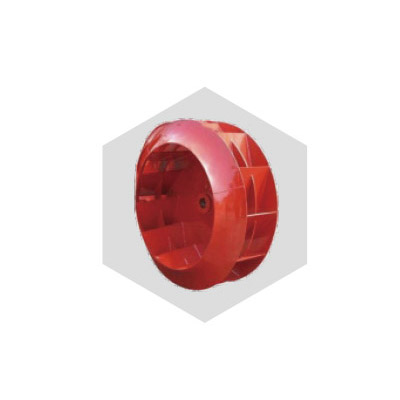

Silent centrifugal fan

静音离心风机

Dream干式螺杆式空压机采用新型离心风机,冷却风量大,噪音低,风压稳定均匀,使冷却器的冷却面积得到充分利用,大大降低了空压机的噪音6-8dB(A),为客户返回一个安静的环境。

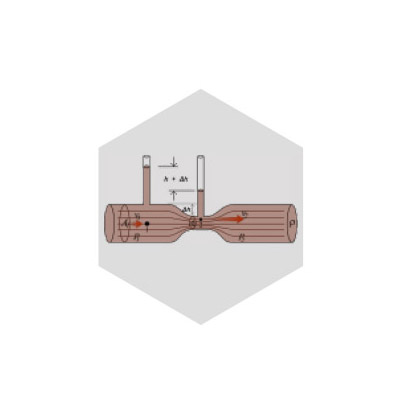

Noise-cancelling venturi

消声文丘里管

空压机的一次和二次主机均采用新开发的文丘里管消声器,以及阻抗集成消声器,可以大大消除压缩机管道发出的噪音。

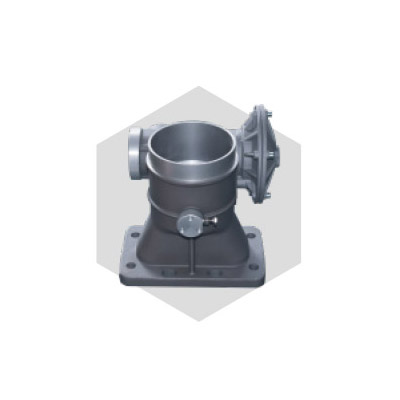

Reliable intake system

可靠的进气系统

高效进气阀,运行更稳定可靠,避免了气动元件的定期更换,减少了不必要的停机时间和维护成本。

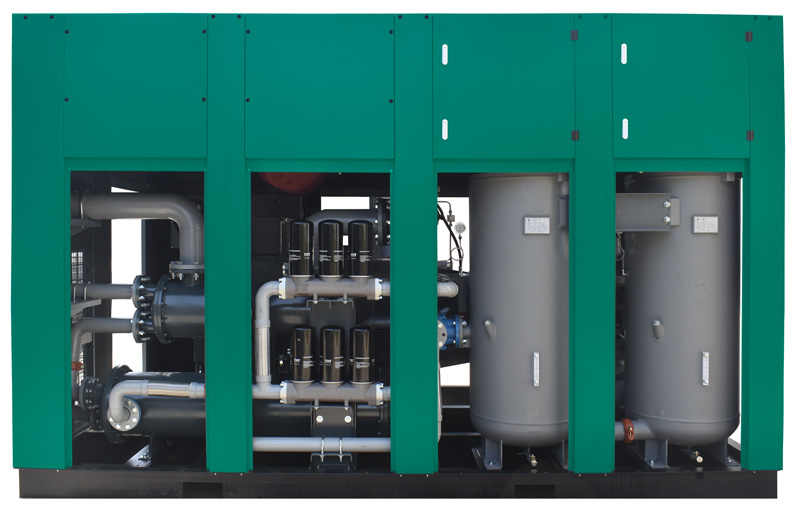

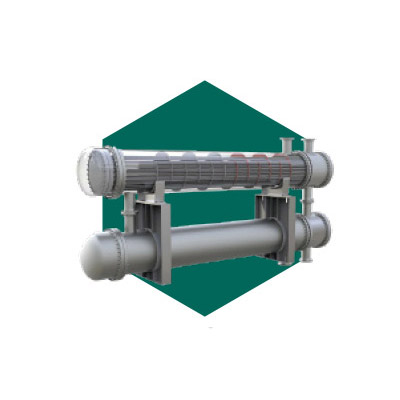

High efficiency water cooler

高效水冷却器

水冷器采用新型螺纹翅片管壳式换热器,压缩空气在管内,冷却水在壳侧,管束是一种新型梅花型铜管,与传统的水冷换热器相比,优点如下:

1.压缩空气管路,压力能力提高;

2.冷却水壳体工艺,冷却水通过多组挡板部件,湍流程度增加,附着管壁上污垢形成的概率降低,延长了设备清洗周期,降低了用户的维护成本;

3.气体通过管内,翅片在管内轴向延伸,使用安全可靠,翅片不易脱落;

4.换热器的安装简单,与传统的管壳式换热器相同;

5.管道侧面采用不锈钢板,防止冷却器因高温高压而腐蚀生锈,影响压缩机主机的寿命和空气质量;

6.管巢可独立拆卸,维护方便;

7.压缩空气管路、水壳工艺,减少压缩空气产生的噪音。

What are the main features of the Dream oil-free dry screw air compressor?
Answer: The Dream oil-free dry screw air compressor features a high-efficiency screw host, oil-free operation, variable speed drive (VSD) for energy saving, low noise, and compact design. It is suitable for a wide range of industrial applications.
What is the working pressure range of this compressor?
Answer: This compressor is designed to operate within a pressure range of 2 to 10 bar, making it versatile for various pneumatic and industrial applications.
Can this compressor provide clean, oil-free air?
Answer: Yes, the Dream oil-free dry screw air compressor is designed to provide 100% oil-free air, which is essential for applications where air purity is critical, such as in the food, pharmaceutical, and medical industries.
What is the power source of this compressor?
Answer: The compressor is typically powered by electricity, with options for different voltage configurations to suit various regional standards.
Is this compressor easy to install and maintain?
Answer: Yes, the Dream oil-free dry screw air compressor is designed for easy installation and maintenance. It features a modular design that simplifies service and repair procedures.
What are the typical applications of this compressor?
Answer: This compressor is suitable for a wide range of applications, including manufacturing, food processing, pharmaceutical production, medical facilities, and any other industry requiring clean, reliable compressed air.
How does the VSD technology work in this compressor?
Answer: The VSD technology adjusts the motor speed according to the air demand, which helps in reducing energy consumption and operational costs. It ensures that the compressor runs efficiently and only consumes power when needed.
What is the expected lifespan of this compressor?
Answer: With proper maintenance and care, the Dream oil-free dry screw air compressor can have a long lifespan. The exact lifespan depends on factors such as usage, operating conditions, and maintenance schedule.
Are there any after-sales services provided by Dream Compressor for this product?
Answer: Yes, Dream Compressor offers comprehensive after-sales services, including installation guidance, technical support, parts replacement, and customized solutions to ensure the compressor operates efficiently and reliably.
Can this compressor be used in harsh environments?
Answer: The Dream oil-free dry screw air compressor is designed to withstand harsh operating conditions. However, specific models may have different ratings for environmental tolerance, so it's best to consult the product specifications or contact Dream Compressor for more information.
What is the warranty period for this compressor?
Answer: The warranty period for the Dream oil-free dry screw air compressor is typically one to five years year, but it may vary depending on the specific model and regional policies. Please refer to the product documentation or contact Dream Compressor for detailed warranty information.
How does this compressor handle noise and vibration?
Answer: The compressor is designed with advanced noise and vibration reduction features, such as a sturdy casing and precision-balanced components, to ensure quiet and smooth operation.
Is this compressor energy-efficient?
Answer: Yes, the Dream oil-free dry screw air compressor is designed for high energy efficiency. The VSD technology and optimized screw design contribute to reduced energy consumption and lower operational costs.
Can this compressor be customized to meet specific requirements?
Answer: Yes, Dream Compressor offers customization options to meet specific customer requirements. This includes tailored configurations, voltage settings, and other features to ensure the compressor meets the unique needs of the application.
What are the dimensions and weight of this compressor?
Answer: The dimensions and weight of the Dream oil-free dry screw air compressor vary depending on the specific model. Please refer to the product specifications or contact Dream Compressor for detailed information on the size and weight of the compressor you are interested in.
