型号: DMWLV-G 系列
品牌:DREAM
工作压力: 2~3 [ bar ] 29.0~43.5[ psig ]
空气容量 (FAD): 12~133 [ m³/min ] 423.8~4696.8[ cfm ]
功率: 45~400 [ KW ] 61.2~543.8 [ hp ]
更多参数,请咨询我们。

SHARE

概述

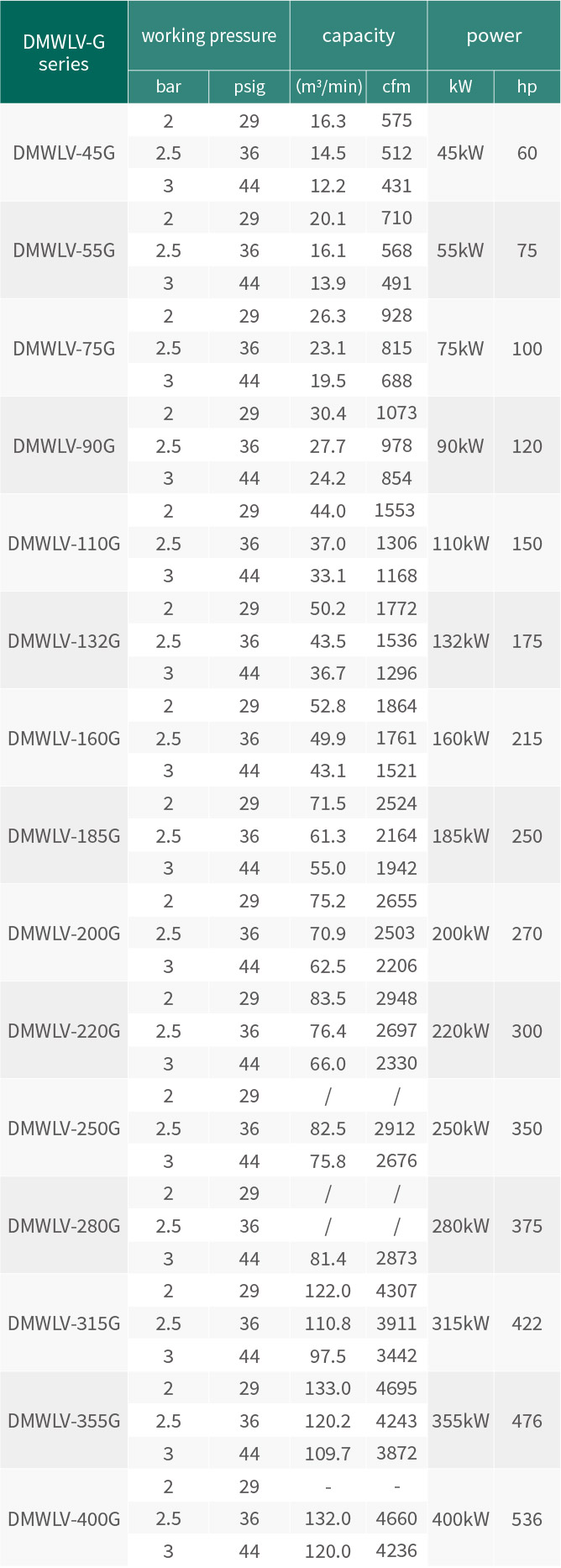

参数
Q&A

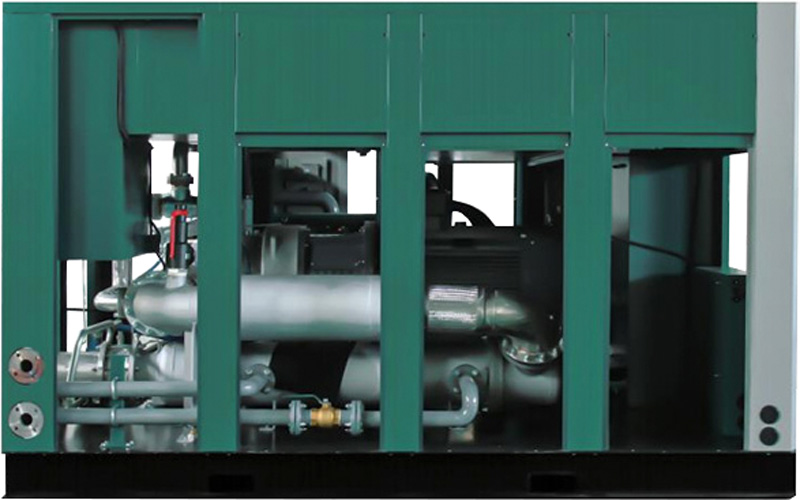

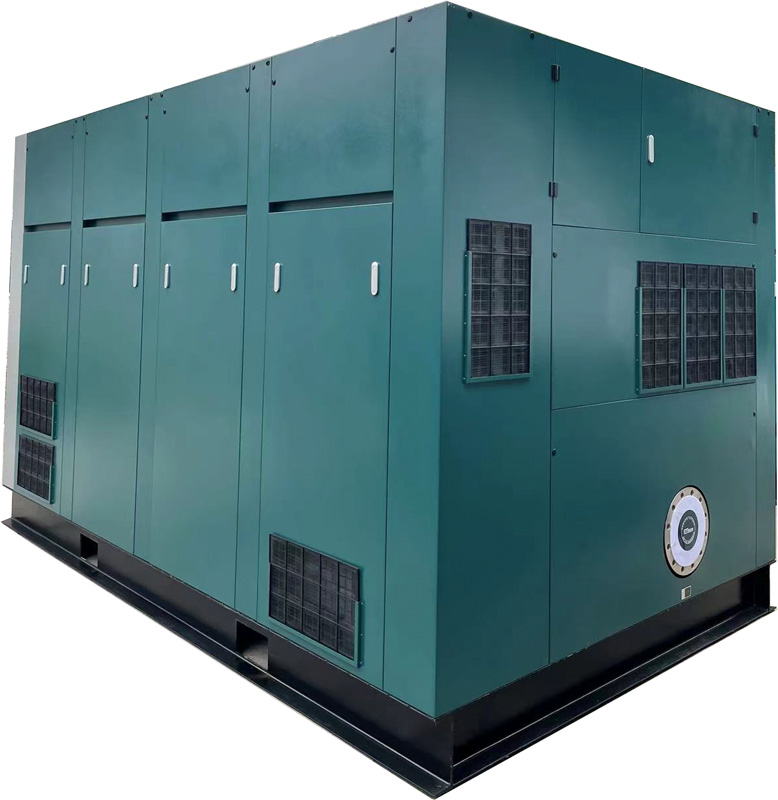

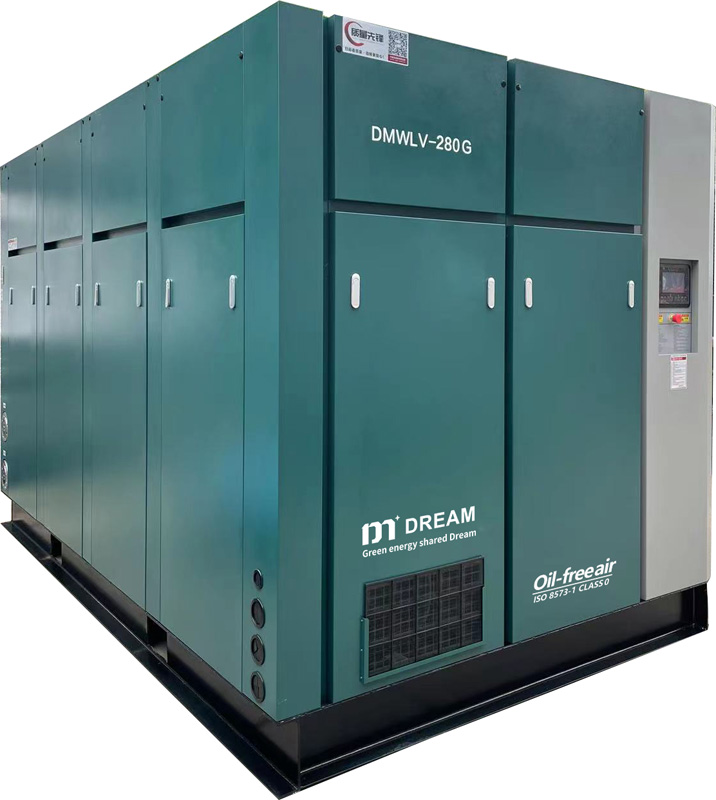

DMWLV-G 系列

低压干式无油永磁变频螺杆式空压机 该系列采用德国进口低压主机,通过ISO 8573-1 CLASS 0级无油认证,展示了卓越稳定的压缩空气供应。


效率革命:

VFD系统通过以当前需求的最有效速度运行压缩机,显著提高了能源效率。与传统的固定速度模型相比,这大大节省了能源。

绿色足迹:

通过减少电力消耗,我们的压缩机有助于降低能源账单和减少碳足迹。这种环保方法与现代可持续发展目标相一致,并支持您实现绿色制造的努力。

增强的可靠性和寿命:

VFD系统减少了电机和压缩机部件的机械应变,避免了与恒定启停和单速运行相关的应力和磨损。这延长了压缩机的使用寿命,降低了维护要求,为您的运营节省了成本,让您放心。

安静操作:

VFD系统对电机速度的平稳调节可降低噪音水平,为您的员工创造更安静、更舒适的工作环境。

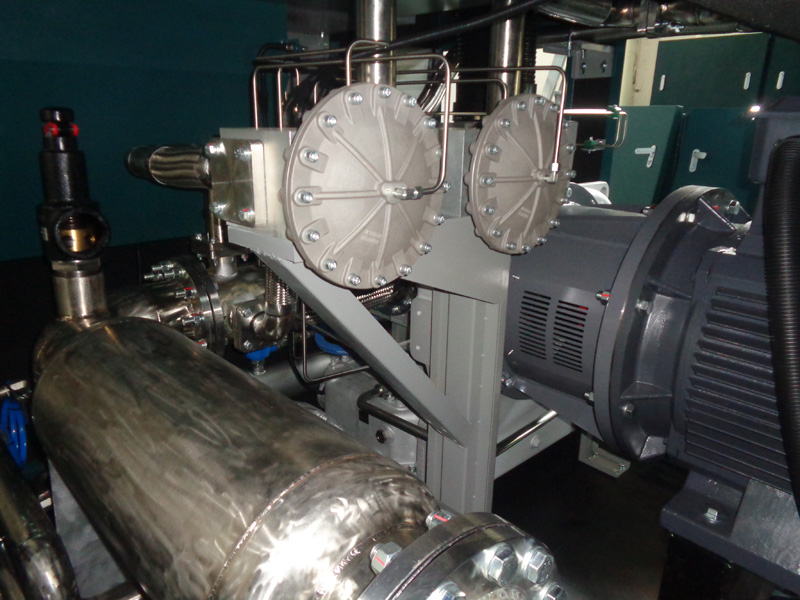

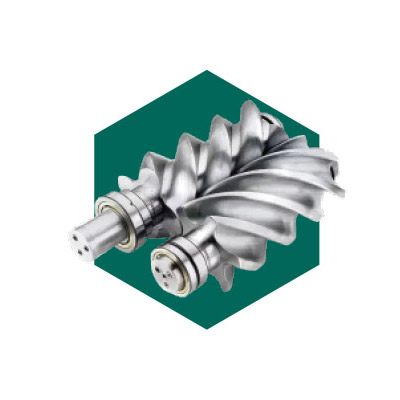

Imported low-pressure special oil-free main engine

进口低压专用无油主机

1.空气压缩室与油室完全分离。空气侧采用不锈钢弹簧加载金属环的无磨损密封系统,润滑油侧采用铜迷宫式密封的无磨损密封系统。

2.主机转子和压缩室内壁涂有行业优质涂层(UITRACOAT)。能有效防止特氟龙等一般涂料的软化和脱落。它具有优异的防腐性能,减少了网间隙的作用。在整个生命周期内,气体体积没有显著减少。

3.主机壳室采用过滤后的润滑油冷却。高效冷却,避免水冷结垢,从而提高运行可靠性。

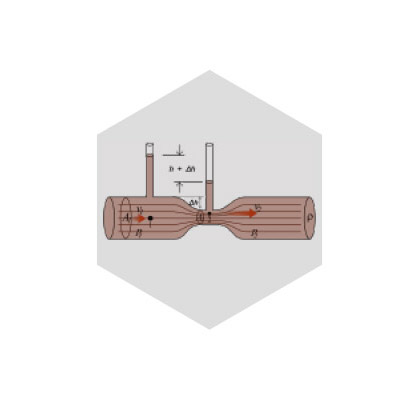

Noise-cancelling venturi

消声文丘里管

除了新开发的文丘里管消声器外,还有阻抗集成消声器,可以大大消除压缩机管道发出的噪音。

High efficiency water cooler

高效水冷却器

Dream干式螺杆空压机水冷器采用新型螺纹翅片管壳式换热器,压缩空气管、冷却水壳侧、管束为新型梅花型铜管,与传统的水换热器相比,优点如下:

1.压缩空气管道,相对于外翅片管的压力能力;

2.冷却水壳体工艺,与管内工艺选择相比,冷却水通过多组挡板部件,湍流程度增加,附着管壁上形成污垢的概率降低,设备清洗周期延长,用户维护成本降低;

3.气体流过管,翅片在管内轴向延伸。相对于外翼,单位迎风面积产生的压降低于外翼,使用安全可靠,翅片不易脱落。

4.换热器的安装简单,与传统的管壳式换热器相同;

5.管道侧面采用不锈钢板,防止冷却器因高温高压而腐蚀生锈,影响压缩机主机的寿命和空气质量;

6.管巢可独立拆卸,维护方便;

7.压缩空气管路、水壳工艺,减少压缩空气产生的噪音。

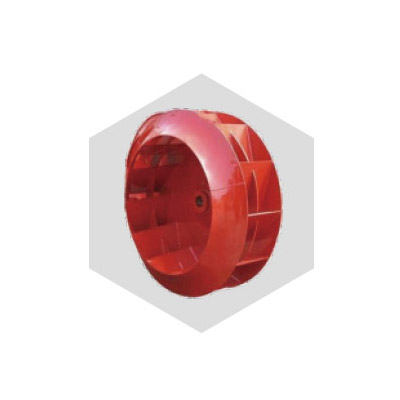

Silent centrifugal fan

静音离心风机

Dream干式螺杆式空压机采用新型的离心风机,冷却风量大,噪音低,风压稳定均匀,使冷却器的冷却面积得到充分利用,大大降低了空压机的噪音6-8dB(A),也为客户提供了一个安静的环境。

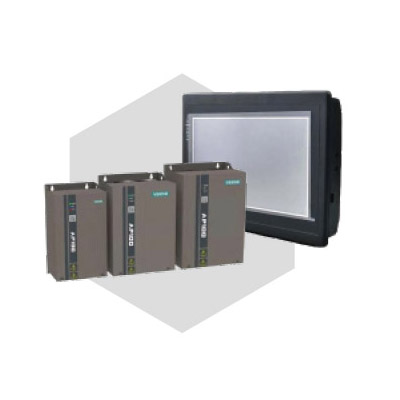

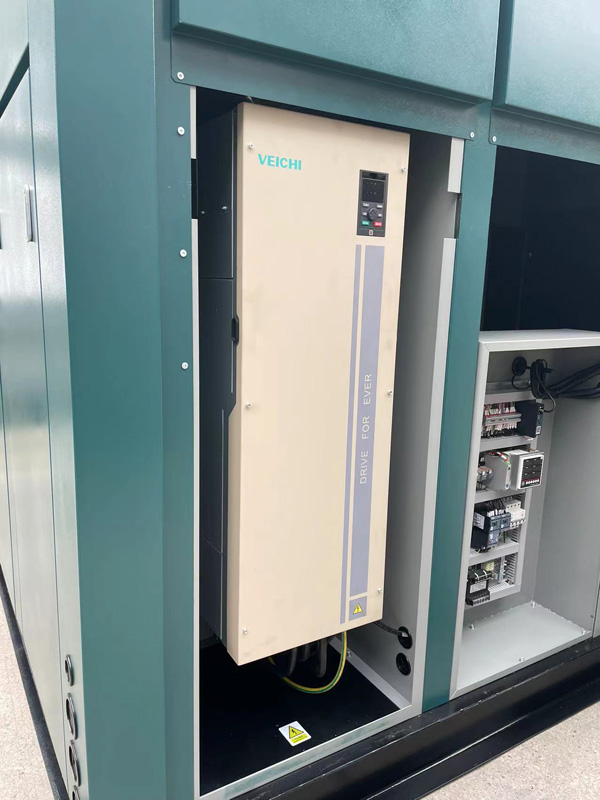

Permanent magnet frequency conversion electronic control system

永磁变频电子控制系统

大尺寸彩色液晶触摸屏,人机界面良好;定制矢量变频器,与电机良好匹配;特殊程序,全面监控机器参数,自动控制机器状态,无需特别注意;独立风道设计,适用于各种工况。

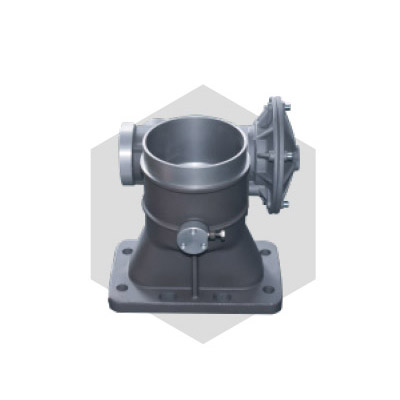

Reliable intake valve

可靠的进气阀

进气阀效率高,运行更稳定可靠,避免了气动元件的定期更换,减少了不必要的停机时间和维护成本。

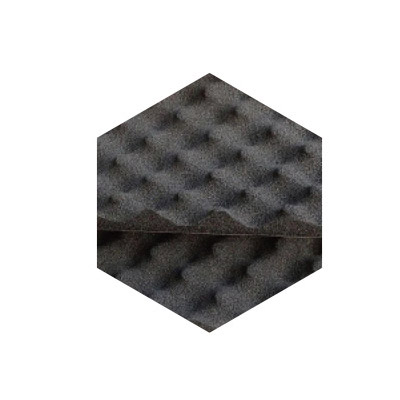

Noise reduction sheet metal design

降噪钣金设计

多重降噪设计,根据噪音计算,内部粘贴特殊阻燃消音棉,降低机组噪音,提供更安静的环境。

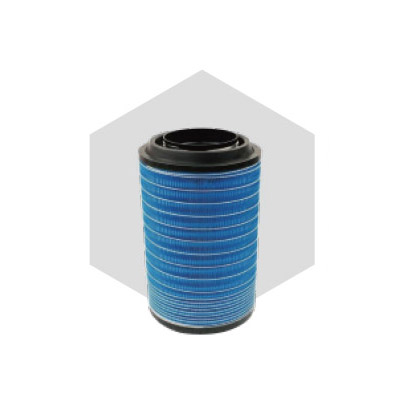

Independent air intake system

独立进气系统

独立进气,确保进气温度等于环境温度。选用大余量空气滤清器,过滤效果更好,进气压力损失更低,节能高效。更方便的维护和更换。

What are the main features of the Dream low-pressure dry oil-free 旋转螺杆式压缩机?
The Dream low-pressure dry oil-free 旋转螺杆式压缩机 features high-quality compressed air, water-lubricated operation for oil-free output, advanced VSD technology for energy efficiency, a compact and lightweight design, and easy maintenance. It also offers a stable and quiet operation, providing a comfortable working environment.*
In which industries can this compressor be applied?
This compressor is suitable for various industries requiring high-quality, oil-free compressed air, such as medical and pharmaceutical, food and beverage, electronics, automotive, textile, pulp and paper, as well as oil and gas industries. Its oil-free design ensures product purity and process integrity.
How does the water-lubricated system work in this compressor?
The water-lubricated system in the Dream compressor replaces traditional oil lubrication. Water is used to lubricate, cool, and seal the compressor's components. This eliminates the risk of oil contamination in the compressed air, ensuring a pure and clean air output.
What are the benefits of using a VSD in this compressor?
The Variable Speed Drive (VSD) technology in the Dream compressor allows for precise control of the motor speed, matching the air demand more closely. This results in significant energy savings, reduced wear and tear on the compressor, and a more stable output pressure.
How does this compressor ensure the quality of the compressed air?
The Dream compressor uses advanced filtration and purification technologies to ensure the quality of the compressed air. The water-lubricated system eliminates oil contamination, while the built-in filters remove impurities and particles, providing clean and dry air output.
Is this compressor easy to maintain?
Yes, the Dream compressor is designed for easy maintenance. With its water-lubricated system, there is no need for oil changes or oil-related maintenance tasks. The compressor also features a simple and accessible design, making it easy to perform routine checks and replacements.
What is the expected lifespan of this compressor?
The lifespan of the Dream compressor depends on various factors, including usage, maintenance, and operating conditions. However, with proper care and maintenance, it can provide reliable performance for many years. The use of high-quality components and advanced technologies ensures durability and longevity.
Can this compressor operate in harsh environments?
The Dream compressor is designed to operate efficiently in a range of environments. However, for harsh or extreme conditions, additional protective measures or customized configurations may be required. It's best to consult with the manufacturer or a professional for specific recommendations.
How does the compressor handle temperature control during operation?
The Dream compressor is equipped with an advanced cooling system that uses water for cooling and temperature control. This helps to maintain a stable operating temperature, reducing the risk of overheating and ensuring optimal performance.*
Is there a warranty for this compressor?
Yes, the Dream compressor comes with a warranty that covers manufacturing defects and issues related to the compressor's performance. The specific terms and duration of the warranty may vary, so it's best to check with the manufacturer or dealer for details.
What kind of after-sales support does Dream provide?
Dream offers comprehensive after-sales support, including technical assistance, parts replacement, and maintenance services. Their customer service team is available to answer questions and provide solutions to ensure customer satisfaction.*
How often should the compressor be serviced?
The servicing frequency of the Dream compressor depends on its usage and operating conditions. However, as a general guideline, it's recommended to perform regular maintenance checks and replacements according to the manufacturer's recommendations. This may include checking and replacing filters, inspecting the cooling system, and ensuring proper lubrication (in this case, water).*
Can the compressor be used for continuous operation?
Yes, the Dream compressor is designed for continuous operation. Its robust construction and advanced technologies ensure reliable performance even during long hours of use. However, it's important to follow the manufacturer's guidelines for proper operation and maintenance to ensure the compressor's longevity.*
What safety features does the compressor have?
The Dream compressor is equipped with various safety features, including overload protection, high-temperature protection, and emergency stop buttons. These features ensure the safe operation of the compressor and protect it from potential damage or hazards.*
How does the compressor handle noise and vibration?
The Dream compressor is designed to operate quietly and smoothly. It features advanced noise reduction technologies, such as sound-absorbing materials and precision-balanced components, to minimize noise and vibration. This ensures a comfortable working environment and reduces the impact on surrounding areas.
