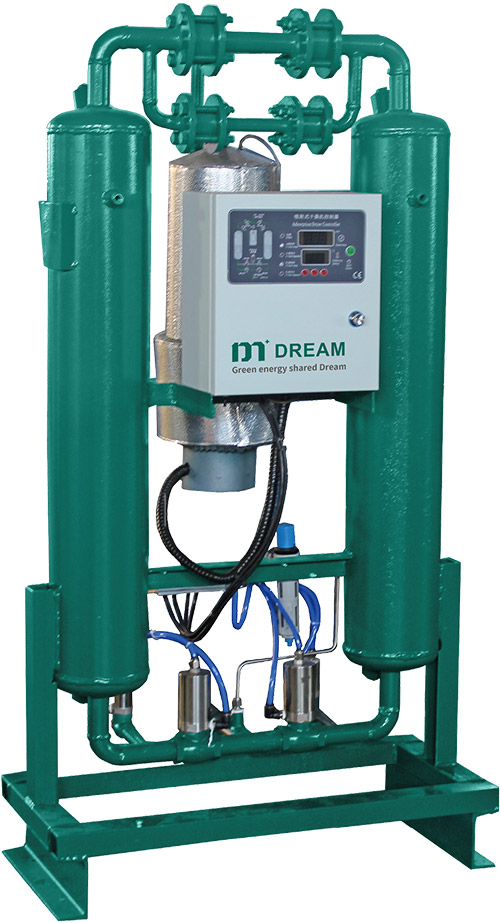

1. The 微热再生 adsorption air dryer is an energy-saving product designed and developed by our company.
2. This 系列 of products has the advantages of thermal regeneration and non-thermal regeneration. It adopts the form of micro heating for the regeneration gas, thereby reducing the consumption of regeneration air and achieving the purpose of energy saving.
3. It avoids the shortcomings of short switching time of 无热再生吸附式空气干燥机 and large loss of regenerative air, and also avoids the disadvantage of large power loss of heat regenerative air dryer.
4. The dryer has reasonable switching time and low consumption of regeneration air. It is currently the most economical energy-saving adsorption dryer in the purification industry. It is widely used in metallurgy, power, electronics, food, chemical and petroleum.
What material are your air tanks made of?
We have carbon steel and stainless steel.
How to choose between microthermal and heatless adsorption dryers?
In general, it is enough to choose the microthermal suction dryer, which consumes less compressed air than the heatless adsorption dryer, so the economy is better.
Why should the air handling capacity of a dryer be greater than the compressor discharge?
Because the dew point temperature of the air has to be taken into account. Compressed air, after passing through the compressor, contains a certain amount of water vapor. The dryer needs to remove this excess water to bring the compressed air to the desired dew point temperature. If the dryer's capacity is the same as the compressor's exhaust volume, the air may not be dried sufficiently during the process due to insufficient margin, resulting in a final compressed air quality that does not meet the requirements.
How much more air is handled by the dryer than is discharged by the compressor?
The air handling capacity of the dryer should be about 1.25 times the exhaust volume of the compressor.
What is the principle of water removal in a refrigerated dryer?
Condensation to remove water, the refrigerated dryer by reducing the temperature of the compressed air, so that the air's water storage capacity deteriorates, and the water that can not be stored becomes liquid and is removed from the compressor.
What is the refrigerant in a refrigerated dryer?
R22
What is the maximum inlet temperature for a high temperature refrigeration dryer?
80℃
What is the pressure dew point of a high temperature refrigerated dryer?
2-10℃
What is the desiccant of an adsorption dryer?
Activated alumina + molecular sieve
What is the filter cartridge replacement interval?
