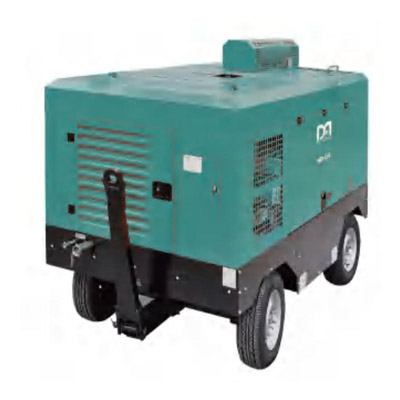

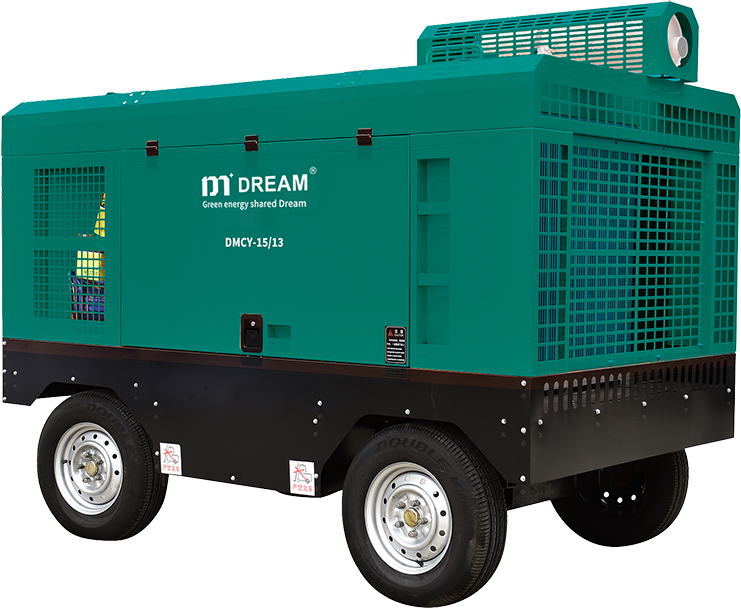

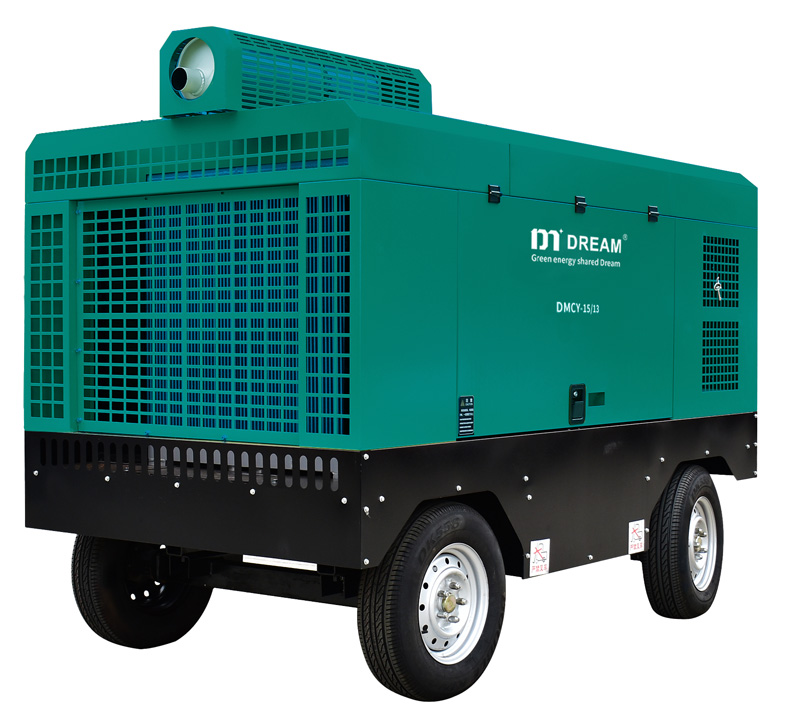

柴油移动式螺杆空压机

型号: DMCY 系列
品牌:DREAM
工作压力: 8~30 [ bar ] 116.0~435.1[ psig ]
空气容量（FAD）: 10~42 [ m³/min ] 353.1~1483.2[ cfm ]
功率: 150~550 [ kW ] 201.2~737.6 [ hp ]
更多参数，请咨询我们。

Message Brochure

概述

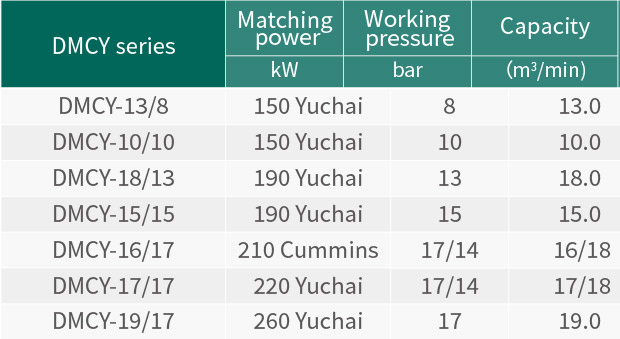

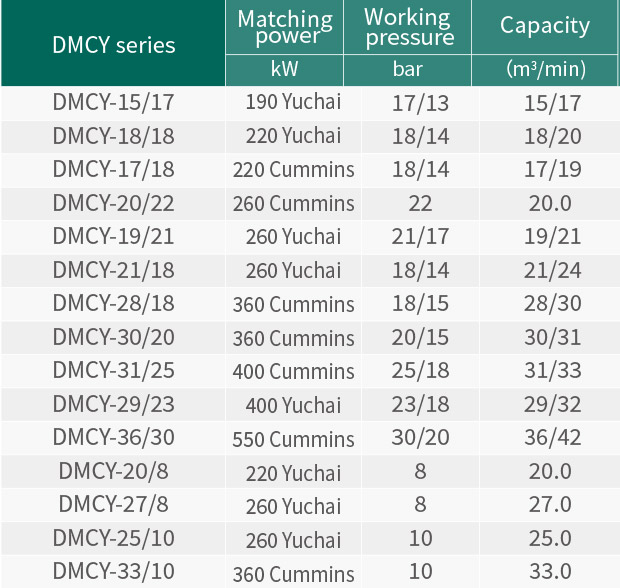

参数

Q&A

产品特点：

柴油移动式螺杆空压机特点:

1.压缩主机：大直径转子设计。压缩主机和柴油机通过高弹性联轴器直接连接。在中间没有减速齿轮。空气端的速度与柴油机的速度相同。

Air end: large-diameter rotor design. The air end and diesel engine are directly connected through a high-elasticity coupling. There is no speed-increasing gear in the middle. The speed of the air end is the same as that of the diesel engine.

2. 柴油机：选用康明斯、玉柴等国内外名牌柴油机，符合国二排放要求，动力强劲，油耗低，全国售后服务体系，用户可获得快速完善的服务。

Diesel engine: select domestic and foreign nameplate diesel engines such as Cummins, Yuchai, etc., which meet the national II emission requirements, strong power, low fuel consumption, a nationwide after-sales service system, users can get fast and perfect service.

3.简单可靠的风量控制系：根据耗气量，风量从0-100%自动调节，同时柴油机的油门也会自动调节，以最大限度地节省柴油。

Simple and reliable air volume control system

According to the air consumption, the air volume is automatically adjusted from 0-100%, and the throttle of the diesel engine is automatically adjusted at the same time to save diesel to the greatest extent.

4.智能监控：能监测空压机排气压力、排气温度、柴油机转速、油压、水温、邮箱液位等运行参数。具有自动报警和停机保护功能。

Microcomputer can only monitor

The microcomputer can only monitor the operating parameters of the air compressor exhaust pressure, exhaust temperature, diesel engine speed, oil pressure, water temperature, mailbox level, etc. It has automatic alarm and shutdown protection functions.

5.多级空气过滤器：适用于多尘的工作环境；多级燃油滤清器，适用于国内油质状况；超大型油水冷却器，适用于高温高原环境。

Multi-stage air filter

Suitable for dusty working environment; multi-stage fuel filter, suitable for domestic oil quality status; super-large oil-water cooler, suitable for high temperature and plateau environment.

6. 宽敞的检修门：需要维护的零件都在触手可及的范围内，空气滤清器、机油滤清器、油箱、电池和机油冷却器的维护方便易行，减少了停机时间。

Spacious maintenance door

The parts to be maintained are all within reach, and maintenance of air filters, oil filters, fuel tanks, batteries and oil coolers is convenient and easy, reducing downtime.

7.易于移动：它仍然可以在恶劣的地形条件下灵活移动。每台压缩机都配有吊环，便于安全方便的吊装和运输。

Easy to move

It can still move flexibly under harsh terrain conditions. Each compressor is equipped with a lifting ring for safe and convenient lifting and transportation.

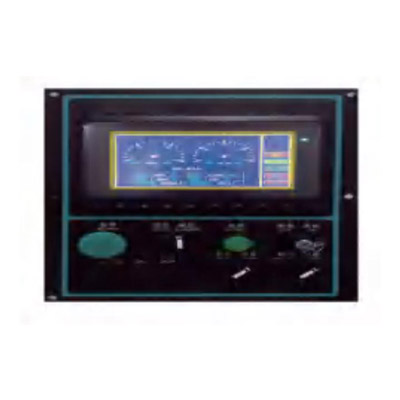

智能控制系统

Intelligent control system

集保护、显示、启动、停止、加载等功能于一体；

Integrate protection, display, start, stop, load and other functions into one;

具有远程监控功能，提供优质服务；

With remote monitoring function, provide great service;

根据客户的空气消耗量自动调整发动机的转数和油门，更省油；

Automatically adjust the number of revolutions and throttle of the engine according to the air consumption of the customer, which is more fuel-efficient;

一键可自由切换单工况、双工况和多工况。

Single working condition, double working condition and multiple working condition can be switched freely by one button.

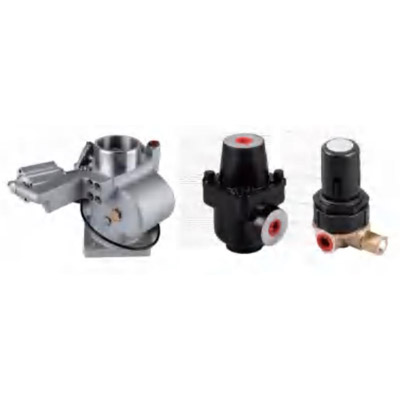

专用阀组

Dedicated valve group

阀组稳定、可靠、耐用，

The valve group is stable, reliable and durable,

常闭进气阀和比例阀调节和释放，轻载启动；

Normally closed intake valve and proportional valve adjust and release, start at light load;

控制灵敏，装卸控制快速稳定，能满足各种工况的空气要求。

The control is sensitive, and the loading and unloading control is fast and stable, which can meet the air requirements of various working conditions.

康明斯发动机

Cummins engine

设计先进，制造工艺精湛，可靠耐用；

Advanced design, exquisite manufacturing technology, reliable and durable;

适应恶劣工作条件下的高强度和重型作业；

Adapt to high-intensity and heavy-duty operations under severe working conditions;

性价比高，维护成本低。

High cost performance, low maintenance cost.

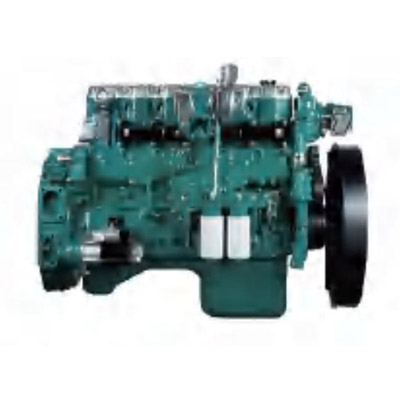

玉柴发动机

Yuchai Engine

采用德国B.S.全套燃油系统，降低油耗

Adopt German B.S. full set of fuel system, lower fuel consump-tion;

高性价比、低维护成本，

High cost performance, low maintenance cost,

13升发动机采用双启动电机，具有更好的低温启动能力。

The 13-liter engine uses dual-start motors, which has better low-temperature startability.

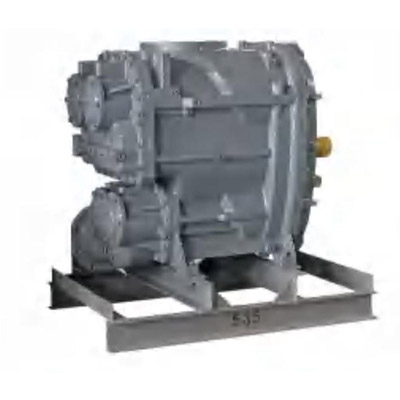

高效稳定的螺杆式压缩主机

Efficient and stable screw air end

大转子，低速，超稳定，

Large rotor, low speed, super stability,

高效两级压缩空气端，比功率更低，更节能；

High-efficiency two-stage compression air end, lower specific power and more energy-saving;

超长保修期5年或10000小时的螺杆转子。

Super long warranty period of 5 years or 10,000 hours of screw rotor.

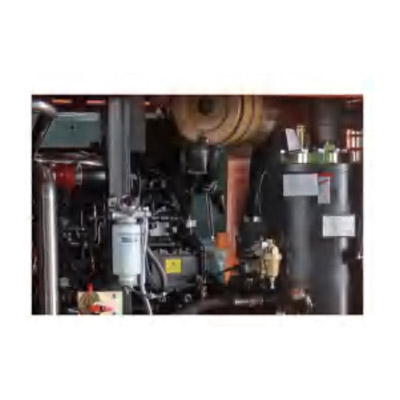

燃油系统

Fuel system

大容量油箱降低了加油频率；

Large-capacity fuel tank reduces the frequency of refueling;

多级燃油滤清器，有效保护燃油喷射和燃油泵；

Multi-stage fuel filter, effective protection of fuel injection and fuel pump;

易于更换和维护的设计。

Easy to replace and easy to maintain design.

节能环保

Energy saving and environmentalprotection

降低油耗是我们一贯的追求和不懈的努力。我们的目标是通过严格精确的产品设计实现前所未有的节油能力。

Reducing fuel consumption is our consistent pursuit and unremitting efforts Our goal is to achieve an unprecedented level of fuel-saving ability through rigorous and precise product design .

What is a 移动式空气压缩机?

A 移动式空气压缩机 is a compact, lightweight, and transportable device that provides compressed air for various applications.

What are the main features of the 移动式空气压缩机?

The 移动式空气压缩机 is small in size and light in weight, easy to transfer and install, and can be used in different workplaces. It has a simple structure, low maintenance cost, and more convenient maintenance. It uses high-quality parts and components, and can provide high performance, high efficiency, and high stability.

What are the main applications of the portable diesel air compressor?

Exploration drilling, Pigging, Road paint spraying, Road maintenance, Blast hole drilling, shipyard, Rock excavation, Renovation and maintenance, Ground engineering, drilling, Tunneling, metro and subway construction, mining, borehole, construction, sandblasting

What is the working principle of the portable diesel air compressor?

• Intake: Air enters the compressor head through the air inlet of the air compressor body. • Compression: In the compressor head, the air is compressed by rotating blades or pistons, reducing its volume and increasing its pressure. • Cooling and separation: The compressed high-temperature and high-pressure air enters the cooling system and is cooled by the radiator or cooling fan. At the same time, impurities such as oil and water in the air are removed in the separator. • Air storage and output: The high-pressure air after cooling and separation is stored in the air tank and output to the use point through the pipeline when needed.

What brands of engines are used in diesel 移动式空气压缩机s?

Cummins, Yuchai, Weicha, or as your requirement.

What are the power, air capacity and exhaust pressure ranges of 移动式空气压缩机s?

电动移动式螺杆空气压缩机: The power range is 30~250kW, the exhaust volume range covers up to 30m³/min, and the working pressure is 8~24bar.柴油移动式螺杆空压机： The power range is 150~550 kW, the exhaust volume range covers up to 42m³/min, and the working pressure is 8~30bar.

What should be paid attention to maintenance?

In terms of use and maintenance, the equipment should be regularly maintained and inspected, especially the cooling system, filter, and lubrication system should be cleaned and replaced. Pay attention to the regular maintenance and care of the equipment, eliminate equipment failures and problems on time, and ensure the normal operation and safety of the equipment.

What is the warranty period for this compressor?

The warranty period for the Dream portable screw air compressor is about one to five years year, but it may vary depending on the specific model and regional policies. The specific warranty period shall be subject to the quotation list.

Can this type of air compressor be used in an outside location?

Yes, our 移动式空气压缩机 can be used outdoors.

Does the diesel 移动式空气压缩机 have dual operating mode?？

Some models can switch between dual pressures with one button, and it is suitable for two different working conditions.

Can this type of air compressor be customized?

Yes, Dream Compressor offers customization service to meet customer requirements. This includes tailored configurations, engine brand, compressed air outlet and others to ensure the compressor meets the unique needs of the application.
